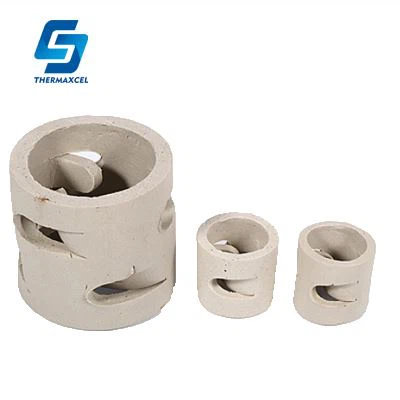

Ceramic Pall Rings are manufactured from high-quality ceramic materials, such as alumina, which offer excellent resistance to heat, corrosion, and chemical attack. These rings have a unique shape with open windows and inward-bent tabs that increase the surface area available for gas-liquid interactions. This design not only improves mass transfer efficiency but also ensures even liquid distribution and prevents channeling. The ceramic material is inert and iron-free, ensuring it does not react with harsh chemicals, making it suitable for a wide range of applications.
Product Parameters
| Name | Size (mm) | Specific area (m3/m3) | Void volume (m3/m3) | Bulk density (kg/m3) | Number per volume (n/m3) |
| Pall ring | Φ25*25*3 | 220 | 0.73 | 620 | 40500 |
| Φ50*50*3 | 120 | 0.78 | 550 | 6800 |
Product Usage:
Ceramic Pall Rings are used in a variety of industrial applications where efficient separation processes are critical. These include:
Chemical Processing: Used in distillation columns for the separation of different components in mixtures.
Petrochemical Industry: Employed in absorption columns for the removal of impurities from gas streams.
Environmental Sector: Used in scrubbing towers for the treatment of industrial emissions.
Pharmaceutical Industry: Used in purification processes where high purity and reliability are required.
Gas and Oxygen Generation: Used in drying columns and cooling towers
Product Advantages
High Mechanical Strength: Ceramic Pall Rings are designed to withstand high temperatures and harsh chemical environments without deforming or cracking.
Excellent Chemical Resistance: These rings offer superior resistance to most chemicals, including acids, alkalis, and organic solvents, making them suitable for highly corrosive environments.
Efficient Mass Transfer: The unique design of the Pall Ceramic Ring promotes even distribution of gas and liquid flow, minimizing pressure drop and ensuring efficient mass transfer.
Thermal Stability: Ceramic material can withstand high thermal shock and temperature fluctuations, making it ideal for high-temperature applications.
Low Maintenance: The durability of Pall Ceramic Rings means they have a long service life, reducing the need for frequent replacement and maintenance.
Product technology:
The manufacturing process of Ceramic Pall Rings involves several critical steps to ensure the highest quality and performance. High-quality ceramic materials are carefully selected and processed through precision molding techniques to form the rings. The rings are then subjected to high-temperature firing to achieve the desired mechanical and thermal properties. Each ring is thoroughly inspected to meet industry standards and specifications. This meticulous manufacturing process guarantees that each Pall Ceramic Ring is of the highest quality, providing reliable performance in demanding industrial applications.
Why Choose Us?
23+
years experience focus on refractories field
2 plants
with 3 sets of tunnel kilns for 120,000 tonnes capacity
3 QC
Labs Technology Centres
120+ employees
with ISO9001,TUV,SGS,Intertek certifications
100+
abroad customers in 50+ countries
20+
major industry furnace projects yearly
Packing
Proper packaging is essential to protect Ceramic Pall Rings during transportation and storage. The rings are typically packaged in robust, moisture-resistant bags or boxes made from high-quality materials such as polypropylene or corrugated cardboard. For bulk quantities, the bags or boxes are often palletized and secured with stretch wrap or banding to facilitate easy handling and transportation. The packaging is clearly labeled with essential information, including the product name, material type, dimensions, and safety instructions. This comprehensive packaging approach ensures that Pall Ceramic Rings reach customers in optimal condition, ready for immediate use in their industrial applications.
