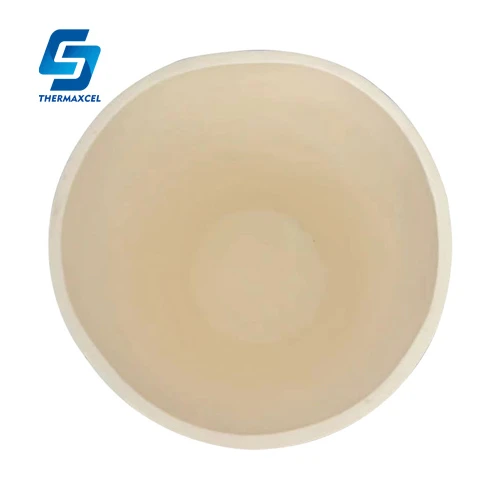

Alumina Ceramic Crucible boats are crafted from high-purity alumina (Al₂O₃), offering exceptional thermal stability, chemical resistance, and mechanical strength. high purity alumina crucibles are capable of withstanding temperatures up to 1800°C, making them suitable for a wide range of high-temperature applications. With their smooth surface finish and precise dimensions, they ensure consistent performance and reliable results in both laboratory and industrial settings.

Property	Unit	Value (99.7% Alumina)
Al2O3 Content	%	≥ 99.7
Bulk Density	g/cm³	≥ 3.90
Max Working Temp	°C	1800
Apparent Porosity	%	< 0.1 (Gas Tight)
Thermal Expansion	10⁻⁶/K	8.0

Our high-density alumina crucibles feature an apparent porosity of less than 0.1%, making them ideal for high-vacuum applications where gas tightness is critical. With an Al2O3 purity of 99.7%, these crucibles minimize impurity leaching during semiconductor sintering or noble metal melting.

Product Parameters

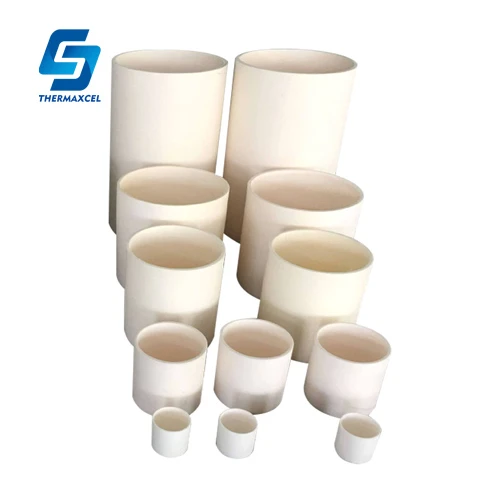

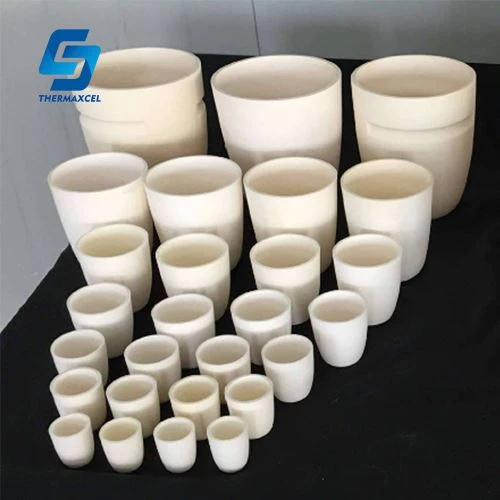

Arc-shape				Cylinder-shape
Item	Top OD	height	capacity	Item	Top OD	Height	capacity
AC1	29	34	10	CS1	20	30	10
AC2	36	41	20	CS1.5	30	30	15
AC3	38	45	30	CS3	30	60	30
AC5	48	52	50	CS3	36	45	30
AC10	58	68	100	CS3	40	32	30
AC15	67	78	150	CS4.5	40	50	45
AC20	73	86	200	CS4.5	42	45	45
AC30	83	106	300	CS5	43	42	50
AC35	87	102	350	CS13	60	60	130
AC50	100	118	500	CS20	55	90	200
AC75	112	132	750	CS20	100	40	200
AC100	125	146	1000	CS35	80	80	350
AC130	130	152	1300	CS55	100	100	550
AC150	140	170	1500	CS200	135	160	2000
AC230	165	153	2300
AC330	220	150	3300

Product Usage:

Our Alumina Ceramic Crucibles are versatile and suitable for a wide range of applications, including:

Metallurgy: Melting and casting of non-ferrous metals, such as gold, silver, and platinum.
Laboratory Research: High-temperature experiments, material analysis, and sample preparation.
Chemical Industry: Handling corrosive chemicals and high-temperature reactions.
Semiconductor Manufacturing: Processing and purifying materials for electronic components.
Glass Production: Melting and refining glass materials.

Product Advantages

High-Temperature Resistance:

Withstands temperatures up to 1800°C, making it ideal for extreme conditions.

Excellent Chemical Resistance:

Resists corrosion from acids, alkalis, and molten metals.

Superior Thermal Shock Resistance:

Maintains structural integrity under rapid temperature changes.

High Mechanical Strength:

Durable and resistant to wear, ensuring a long lifespan.

Smooth Surface Finish:

Minimizes contamination and simplifies cleaning.

Customizable Sizes and Shapes:

Available in a variety of dimensions to meet specific application requirements.

Product technology:

The manufacturing of our Alumina Ceramic Crucibles involves advanced techniques and rigorous quality control to ensure superior performance.

Key steps include:

High-Purity Alumina:

Selected for its exceptional thermal and chemical properties.

Precision Molding:

Ensures uniform wall thickness and precise dimensions for consistent performance.

High-Temperature Sintering:

Enhances density, strength, and thermal stability.

Quality Testing:

Each crucible undergoes rigorous testing for thermal shock resistance, chemical resistance, and mechanical strength.
